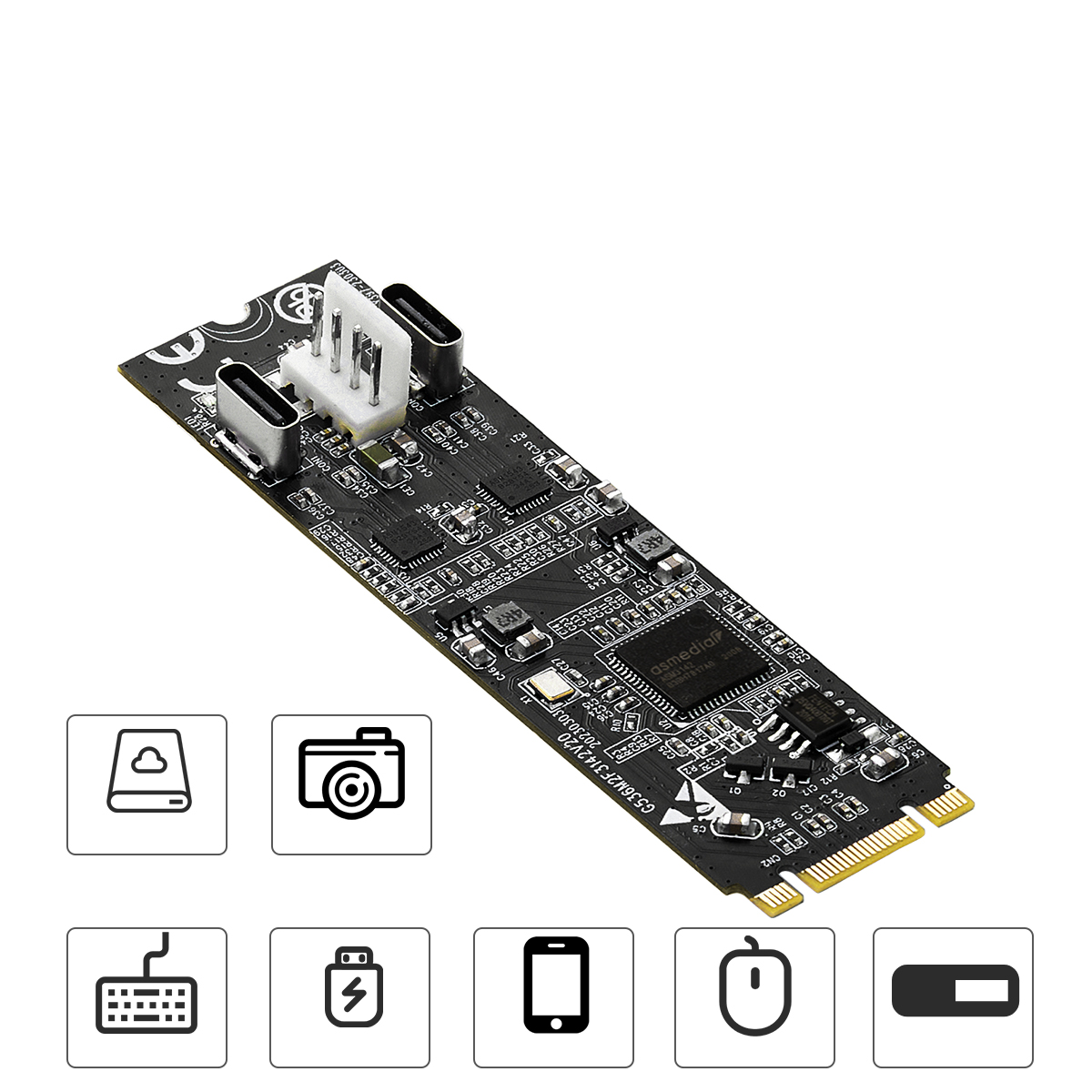

USB 3.2 Gen 2 (10 Gbps) 2-Port Type-C M.2 22×60 B+M key Controller Card – SI-ADA20247

USB 3.2 Gen 2 (10 Gbps) 2-Port Type-C M.2 22x60 B+M key Controller Card - SI-ADA20247

Part Number: SI-ADA20247 Brand: IOCrest

  • Dual USB Type-C 3.1 connectors. Up to 10Gbps data transfer speed, twice as fast as USB 3.0. Powered by ASM3142 controller with PCIe Gen3 x2 lanes performance.
  • Support up to 2A/5V on USB-C port. Requires having the power cable connected to a Molex power connector.

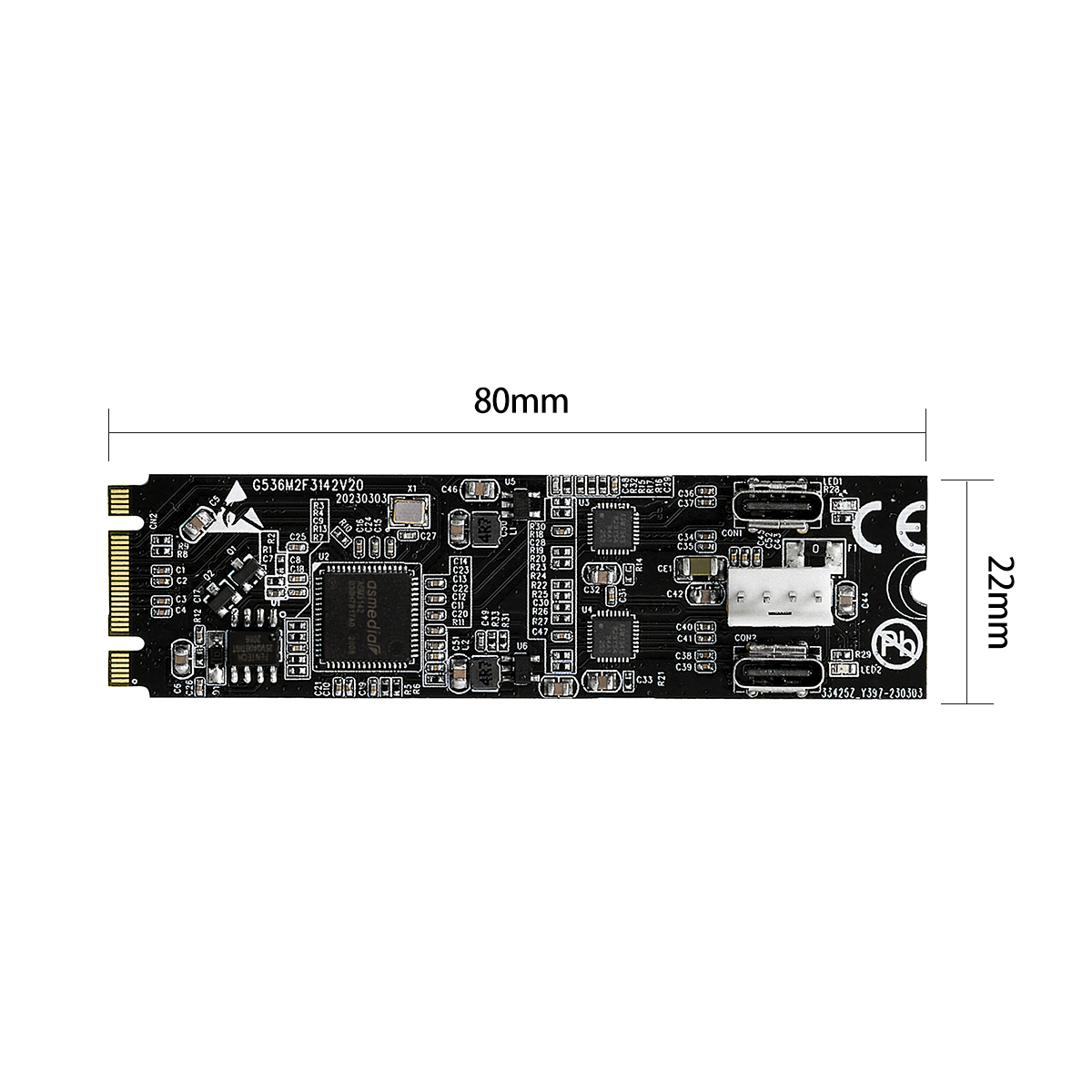

  • Dual USB-C 3.1 Gen 2 port to a M.2 22x60 B+M Key Connection M.2 PCI-Express 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.1a.
  • No driver installation is required on MacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later; Linux 2.6.31 and later. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003.
Description PACKAGE DETAILS HARDWARE REQUIREMENTS DOWNLOAD QUESTIONS

The new ASM3142 doesn't just deliver the fastest USB 3.1 performance. It also reduces the power consumption by as much as 50%. When compared with a Gen3 x1 connected controller, the AS3142 is able to deliver double the performance
OS SUPPORTED: All Windows OS



Package Information

Package Dimensions: L 5.50 × W 4.00 × H 1.00 in
Package Weight: 0.20lb
UPC: 850039353420

Package Content

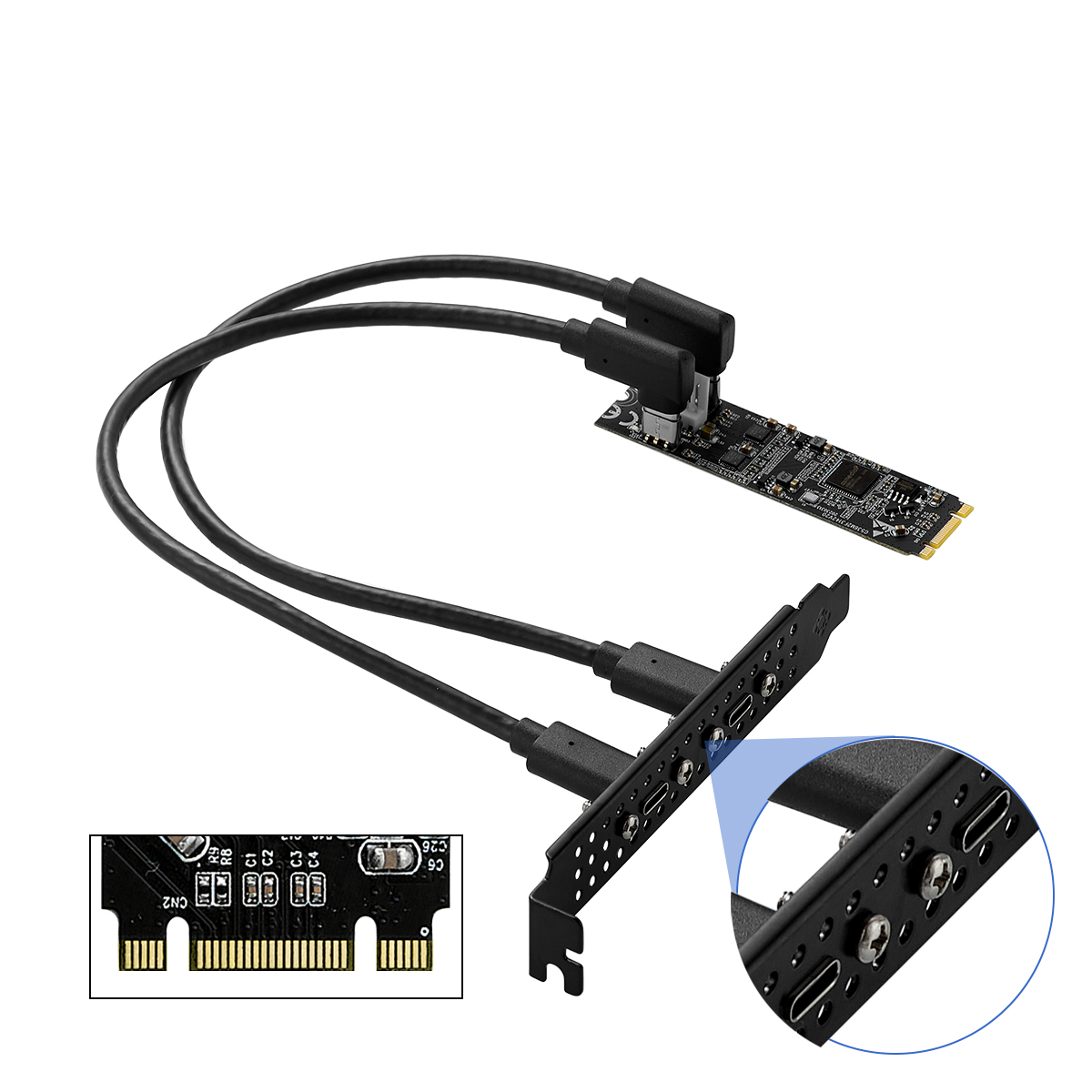

  • (1) USB-C 3.1 to M.2 Adapter
  • (1) Molex Power Cable
  • (1) Manual
  • (1) Driver CD

PC with a Free M.2 Slot

TYPE OS LANGUAGE VERSION FILE
Driver Win7, Win 8.1, Win10, Windows Server 2008 / 2012 English 1.16.54.1 Download
