4 Bays USB4.0 (USB-C) 40G Portable NVMe (M Key, B+M Key) / PCIe SSD (2280, 2260, 2242, 2230) Ultra Fast External SSD Docking Station Duplicator Cloner (Docking Only)
Part Number: SY-TDB40180 Brand: IO Crest
- Ultra Speed USB 4.0 Gen 4x4 to M.2 NVMe SSD Docking Station.
- ASMedia ASM2464 Chipset.
- All 4 bays support M.2 NVMe SSD up to a total 32TB. One touch offline cloner from 1 SSD to 1,2,3 SSDs.
- It supports data transfer with USB4 and Thunderbolt 3/4/5 ports to achieve read speed up to 40Gbps.
- Excellent heat dissipation with Dual 8cm silent fan protects M.2 hard drives from overheating. The dock is made of full aluminium alloy case. Aluminum enclosure to withstands heavy use.
- Supports M.2 NVMe / PCIe SSD with M-Key and B+M Key connectors in size of 2280/2260/2242/2230 mm up to 32TB capacity. NOT compatible with M.2 SATA SSD and M.2 SATA AHCI B Key SSDs.

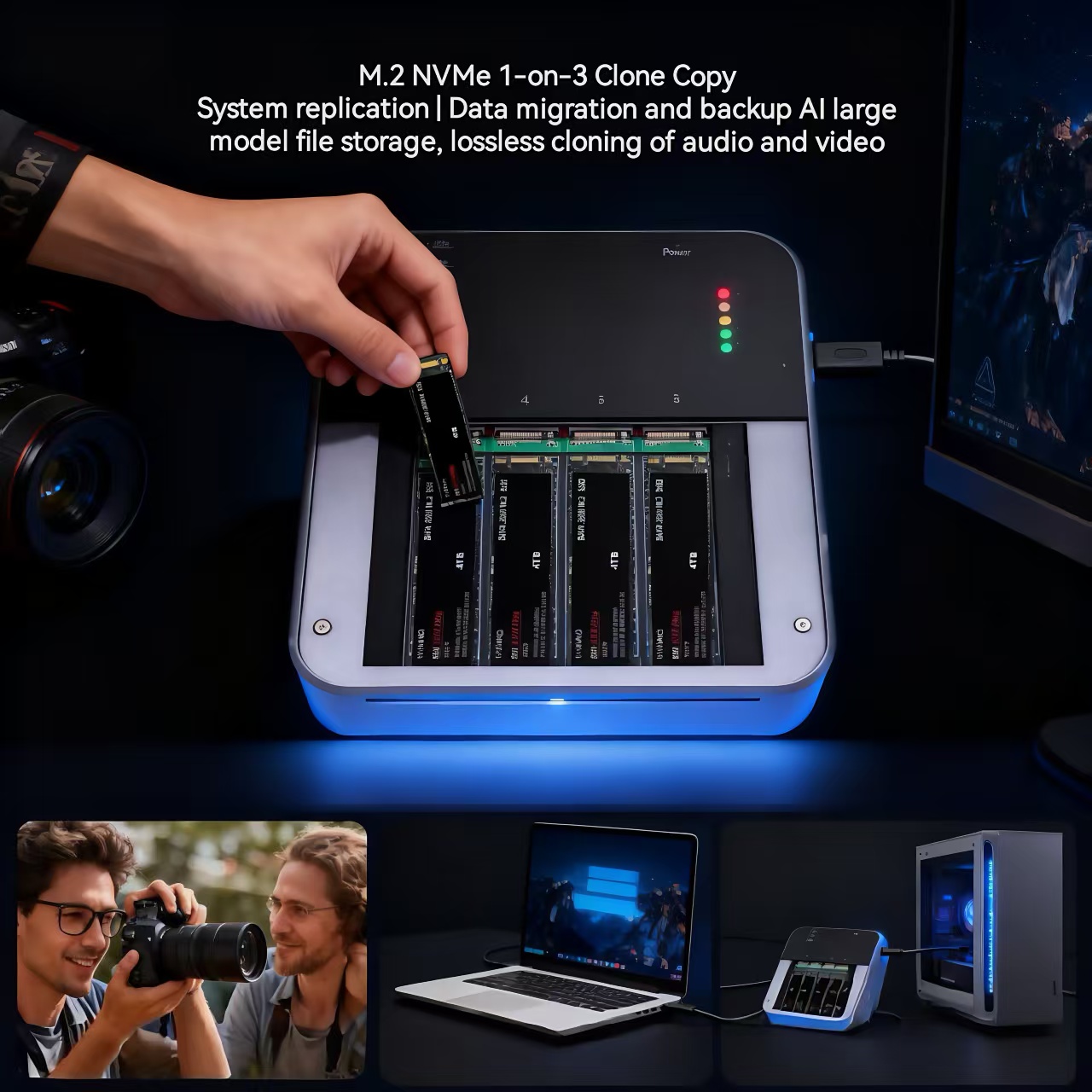

- Allows offline ultra fast cloning from 1 SSD to 3 SSDs simultaneously. Files can be copied without connecting to a computer. Plug & Play.
- The NVMe interface (PCIe M.2 ) offers enhanced bandwidth, low latency, and power efficiency. Perfect for tech enthusiasts, high-end gamers, and 4K and 3D content designers.
- Equipped with 12V 4A power adapter. Operating Temperature: 0°C to +30°C；Storage Temperature: -40°C to +110°C.
- It is compatible with Thunderbolt 3/4/5. Ideal for notebooks like the MacBook Pro (late 2016) and professional workstations that require reliable, accelerated access to external storage.
- It is compatible with all major OS including Windows, Mac OS, Linux, Unix, Android, iOS and more.
This 4-Bay M.2 NVMe SSD duplicator supports up to 32TB. It allows offline ultra fast cloning from 1 SSD to 3 SSDs simultaneously. Files can be copied without connecting to a computer. Plug & Play. Direct insert up to four SSD into the bay slots without any tool. Excellent heat dissipation and air flow with aluminum casing design. It turns your M.2 NVMe SSD Enclosure M Key or B+M Key into a high-speed storage solution via a USB 4.0 Gen 4x4 connection, at up to 40Gbps throughput. The M.2 NVMe SSD docking fits easily into your laptop bag, which is ideal for traveling and carrying. Its lightweight yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move. Compatible with NVMe SSD size 2280 / 2260 / 2242 / 2230, and works with tablets, laptops and desktop computers and other USB-enabled devices with its included USB C cables. Supports Windows, Mac OS, Linux or above.
OS SUPPORTED:
All Windows, Mac OS and Linux
Package Information:
Package Dimensions: L 7.25 × W 7.00 × H 2.00 in
Package Weight: 3.00 lbs
UPC: 850039353499
Package Content:
- (1) 4-Bay USB4/Thunderbolt 40G Docking
- (1) USB 4.0 Type-C Cable
- (1) User Manual
- (1) 12V DC Adapter
- M.2 SSD Screws and Screw Driver
PC with USB 4.0 Type-C Port
