2 Port SATA III Mini PCI-e 2.0 RAID Card
Part Number: SI-MPE40095 Brand: IO Crest
- Based on ASMedia ASM1061R PCI-Express 2.0 SATA 6Gbps Controller
- 1-Lane Mini PCI-Express 2.0 Interface. Supports Communication Speed of 2.5Gbps and 5.0Gbps
- Compliant with PCI-Express 2.0 Base Specification
- Hard Drive Activity LED Indicator. (LED Blinks for Read/Write Activities)
- Serial-ATA (SATA) Interface:2 SATA 6.0Gbps Ports Compliant with Serial-ATA Specification 3.0 Supports Communication Speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps Compatible with SATA-III (6Gbps), SATA-II (3Gbps), SATA-1 (1.5Gbps) Hard Drives and SSD's Supports G
- Supports RAID 0 / 1 / SPAN.
- Dimensions: 30x50.95 mm
- ***Notes: Card is bootable but it requires a re-install of the OS/repair of OS.**
This card enables Serial ATA PHY up to 6.0Gbps high speed interface utilizing a native Mini PCI-Express 2.0 interface.
OS SUPPORTED:
All Windows OS
All Windows OS
Package Information
Package Dimensions: L 7.00 × W 5.50 × H 1.50 in
Package Weight: 0.25lb
UPC: 810154018024

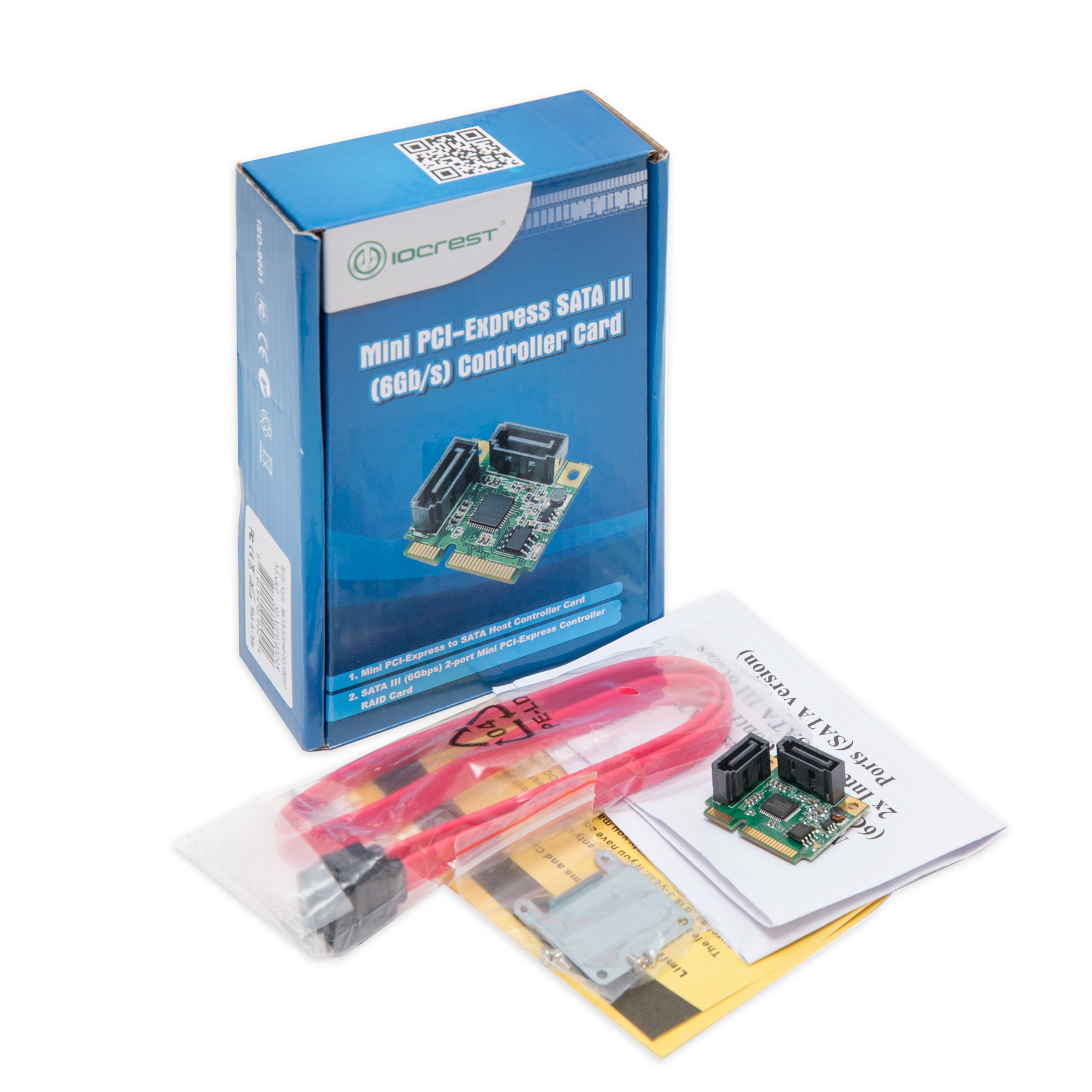

Package Content
- Mini PCI-Express SATA Controller Card
- Driver CD
- User’s Manual
- 1x SATA Cable

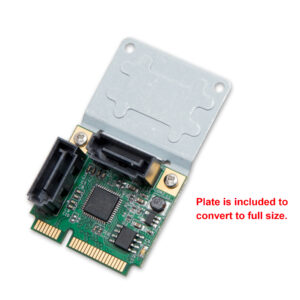

- 1x Half Size to Full Size Bracket
PC Motherboard with Mini PCI-Express Slot
| TYPE | OS | LANGUAGE | VERSION | FILE |
| Drivers | Windows OS | English | 1 | Download |
