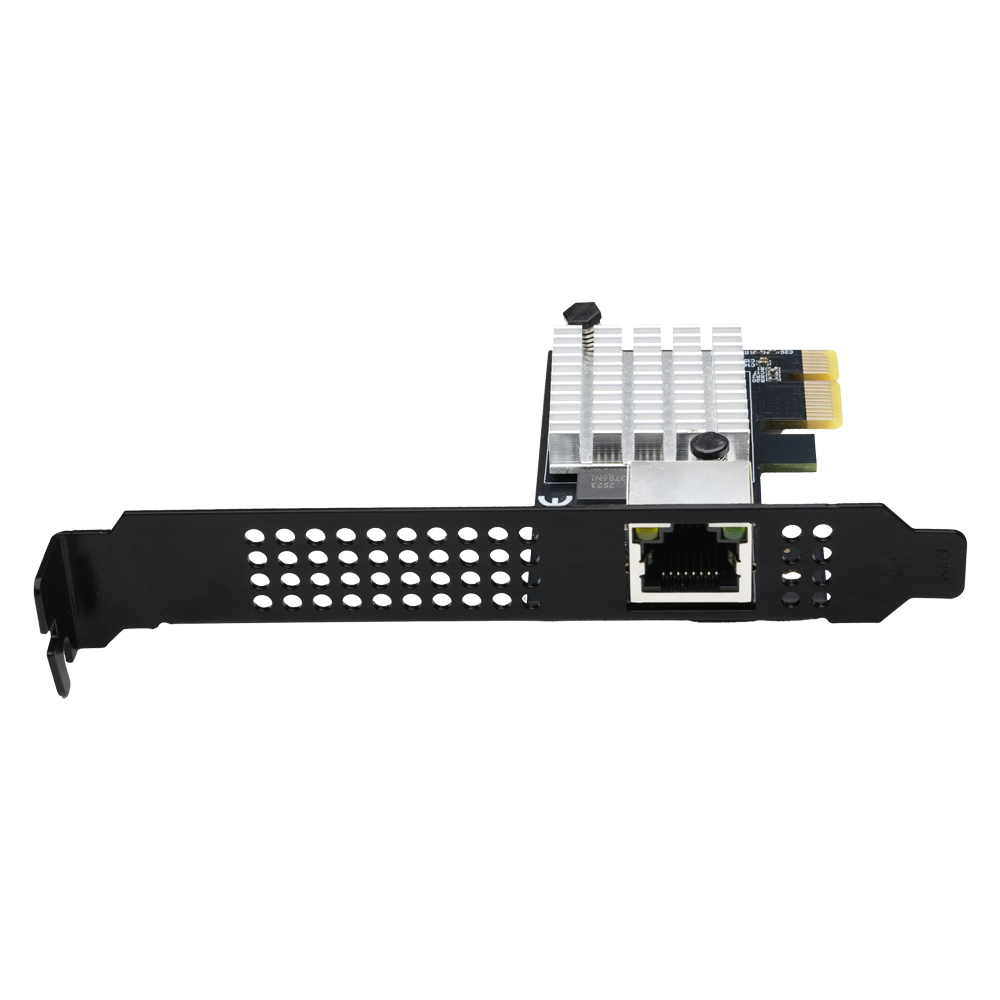

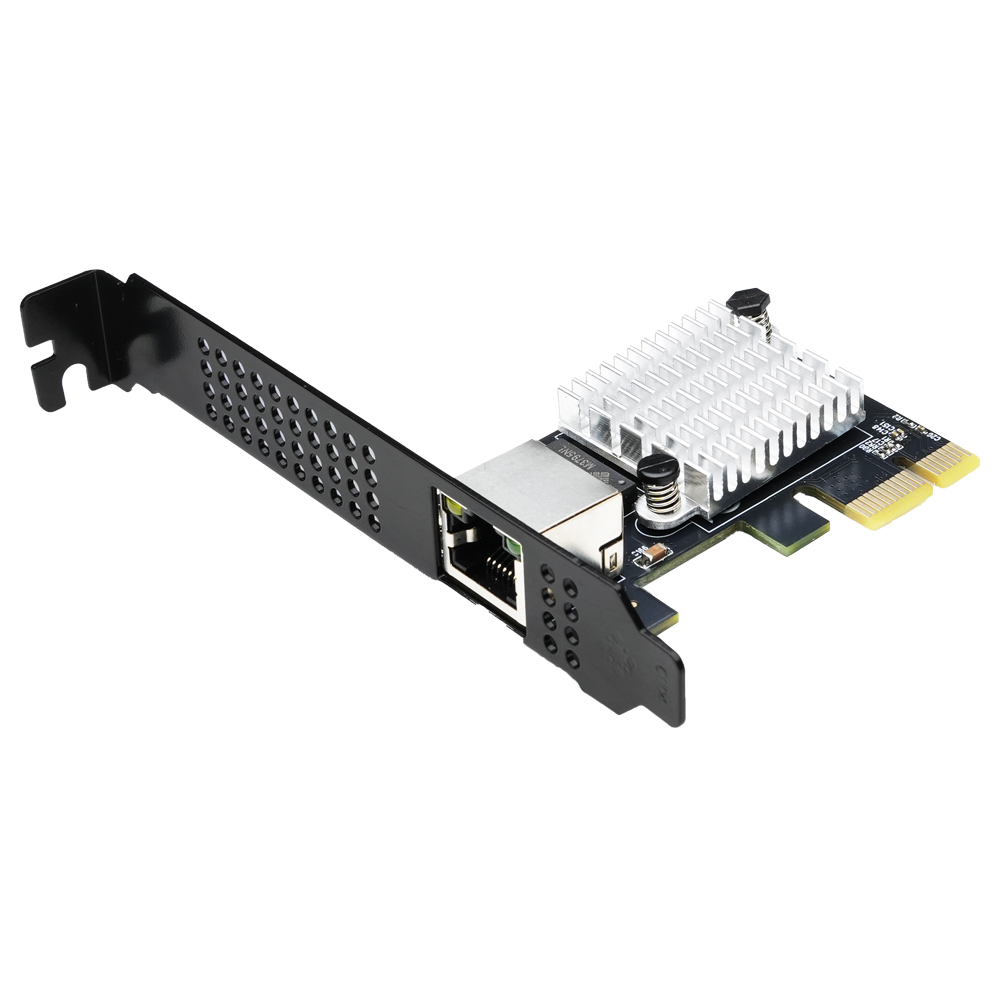

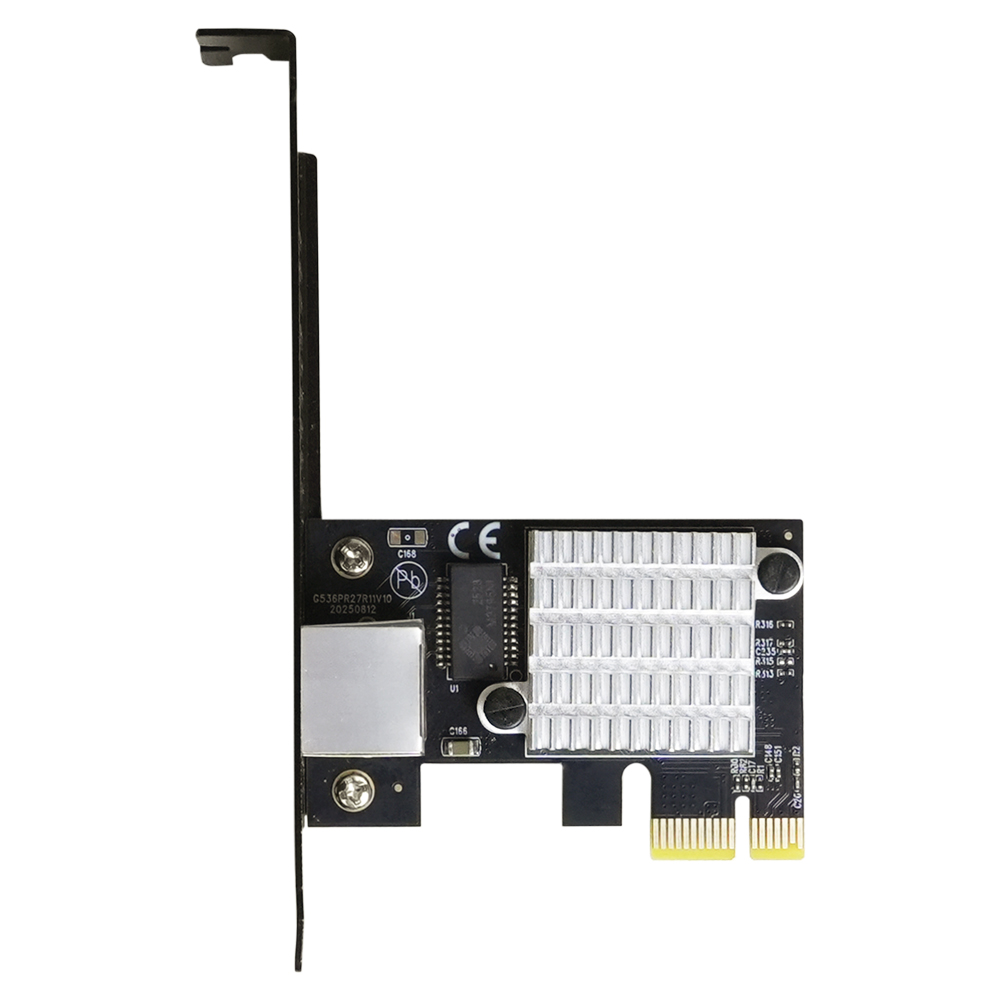

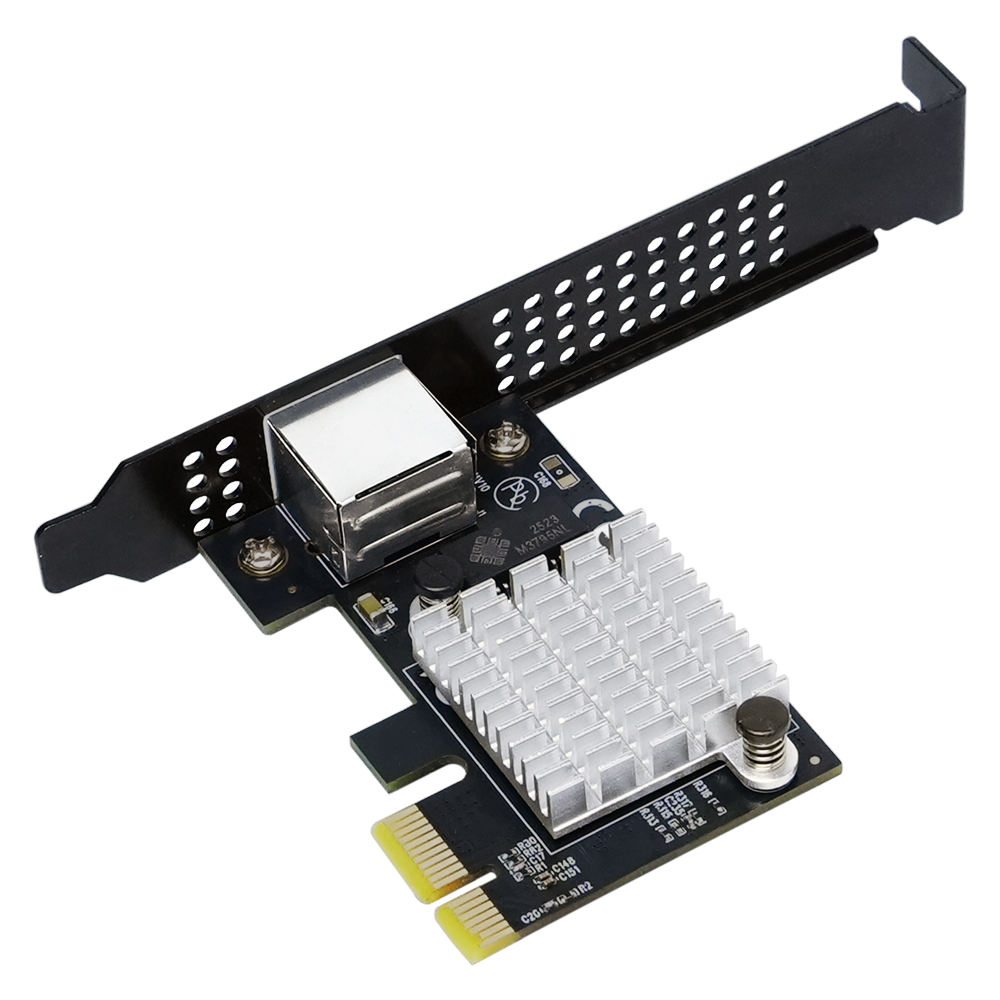

IO CREST Single Port 10 Gigabit Ethernet PCI-e x1 Network Card RTL8127 Chipset
Part Number: SI-PEX24102 Brand: IO Crest

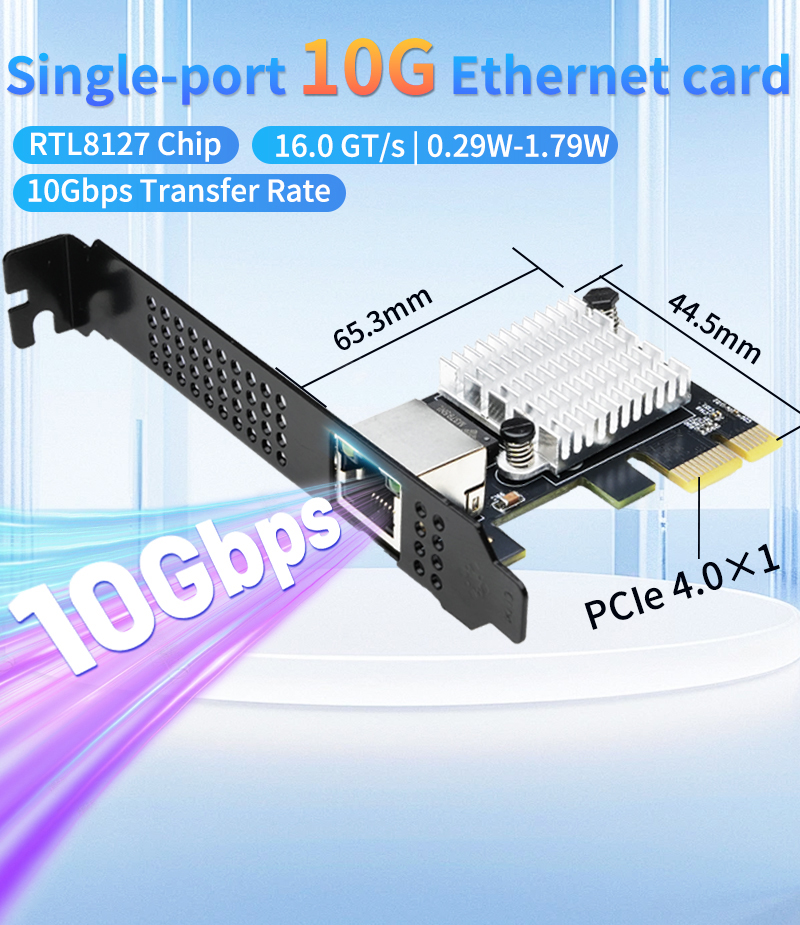

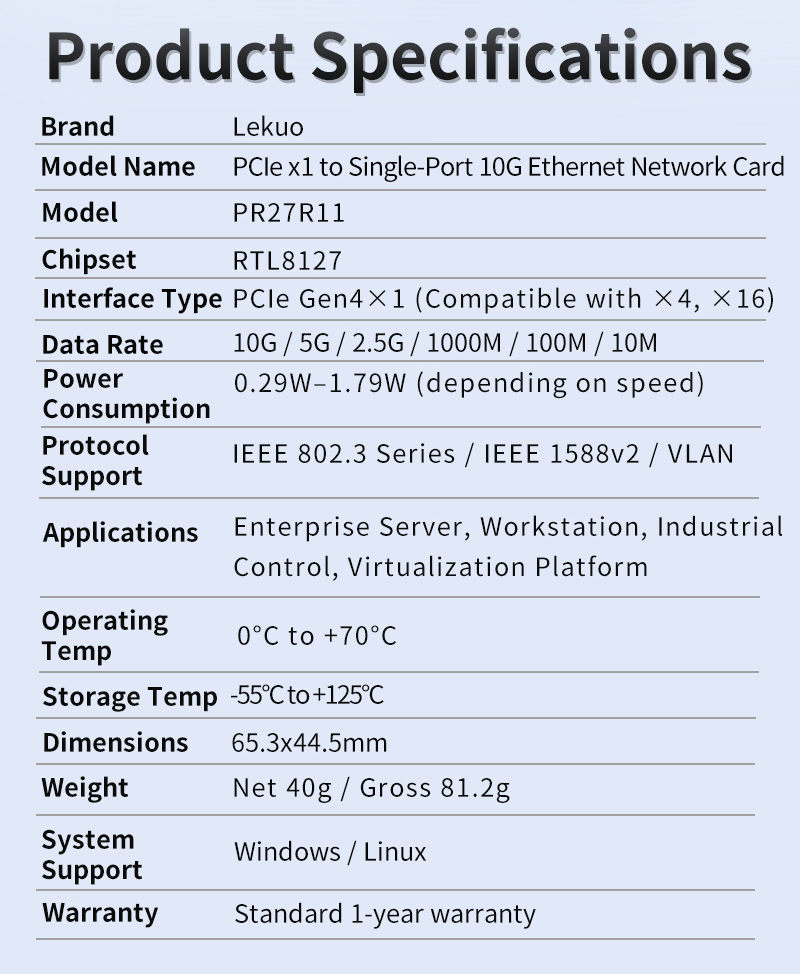

- Chipset: RTL8127AT-CG
- Number of Port: 1
- Support bus widths:Gen4 x1, Gen4 x4, x16
- Support PCI Express Gen-III x1
- Support line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane
- Jumbo frame support up to 16 KB
- Support 10G/5G/2.5G/1000M/100M LAN speed

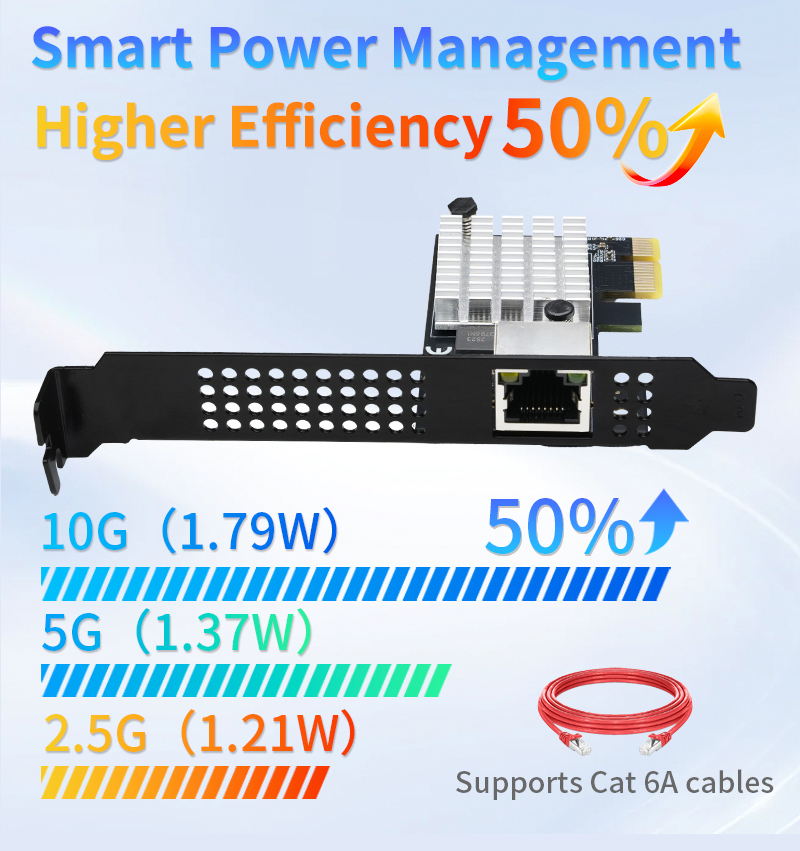

- 1.79W typical 10GBASE-T operating power per port: 100 meters of Cat 6A
- 1.37W typical 5GBASE-T operating power per port
- 1.21W typical 2.5GBASE-T operating power per port
- 0.92W typical 1GBASE-T operating power per port
- 0.54W typical 100BASE-T operating power per port
- 0.29W typical 10BASE-T operating power per port
- Support ECMA-393 ProxZzzy Standard for sleeping hosts
- Support LTR(Latency Tolerance Reporting)
- Support Wake-On-LAN and‘RealWoW’
- Support Legacy PXE (minimal support) and EFI PXE
- Support 32-set 128-byte Wake-Up Frame pattern exact matching
- Support Microsoft WPI(Wake Packet Indication)
- Compatible with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE802.3bz

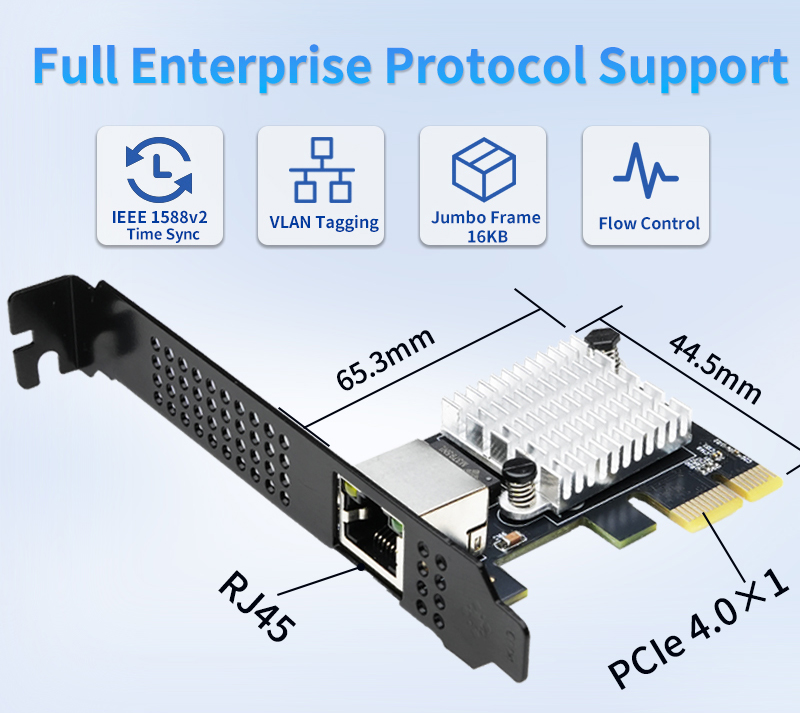

- Support Synchronous Ethernet and Precision Time Protocol (PTP) including IEEE 1588v1,IEEE 1588v2,IEEE 802.1AS
- Support IEEE 802.1P Layer 2 Priority Encoding
- Support IEEE 802.1Q VLAN tagging
- Support IEEE 802.1 ad Double VLAN
- Support IEEE 802.3az (Energy Efficient Ethernet)
- Support IEEE 802.3an (10GBase-T)
- Support Full Duplex flow control (IEEE 802.3x)
- Jumbo frame support up to 16 KB
- Microsoft NDIS5, NDIS6 Checksum Offload (IPv4,IPv6,TCP,UDP) and Segmentation Task-offload (Large send v1 and Large send v2)
- Support quad core Receive -Side Scaling (RSS)
- Support Protocol Offload (ARP & NS)
- Operation Temperature :0℃ to 70℃ (32℉ to 158℉)
- Storage Temperature：-55℃ to 125 ℃ (-131℉ to 257℉)
- Storage humidity: 90% non condensing relative humidity at 35℃
The SI-PEX24102 is an 10G ethernet card which offers significantly faster data transfer speeds compared to a standard gigabit ethernet card, allowing for smoother handling of large data files, improved network performance for demanding applications like video streaming or high-resolution graphics, and better scalability to accommodate growing network needs, all while minimizing data bottlenecks in high-traffic environments.
The SI-PEX24102 NIC supports 10GBASE-T Ethernet in compliance with the IEEE 802.3an standard, as well as 5 Gbps and 2.5 Gbps Ethernet speeds over standard Cat 5e and Cat 6 copper cables. It is also compliant with IEEE 802.3bz standard and backwards-compatible with legacy 1000BASE-T Ethernet.
The RTL8127AT-CG is a single-chip, single-port, high-performance PCIe 3.0 Multi-Gig 10GBASE-T/5GBASE-T/2.5GBASE-T/ 1000BASE-T/100BASE-TX Ethernet adapter.

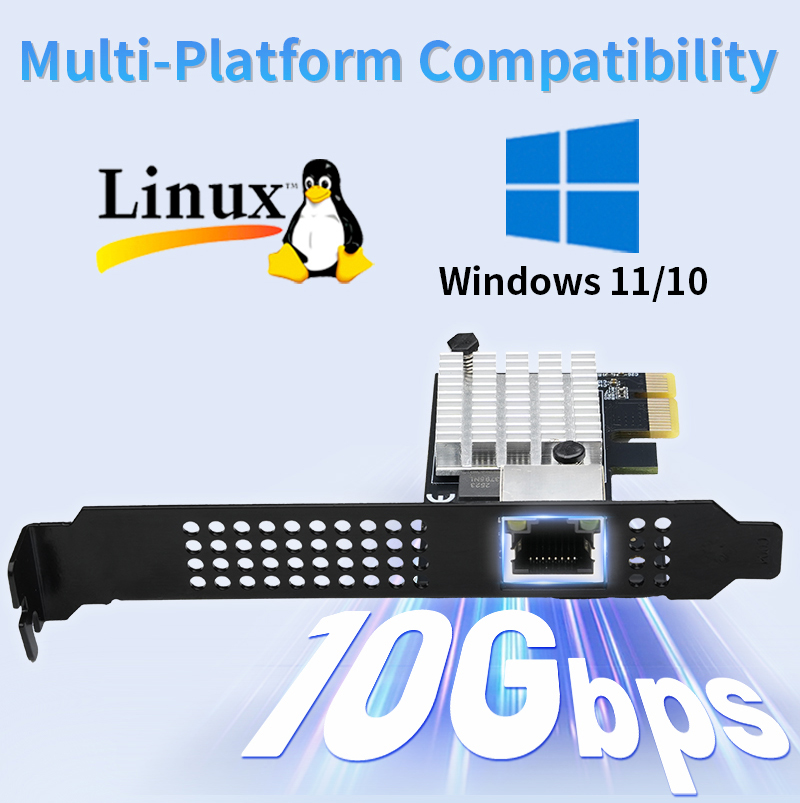

OS SUPPORTED:
Windows 10, 8.1, 8, 7 (32/64 bit)
Linux 3.2, 3.10, 3.12, 4.2, and 4.4
Package Information
Package Dimensions: L 7 × W 5.50 × H 1.50 in
Package Weight: 0.34lb
UPC: 850039353505
Package Content
- (1) 10 GigaBit Ethernet Card
- (1) Low Profile Bracket
- (1) Manual
- (1) Driver CD
PC with Free PCI-Express x1 Slot
