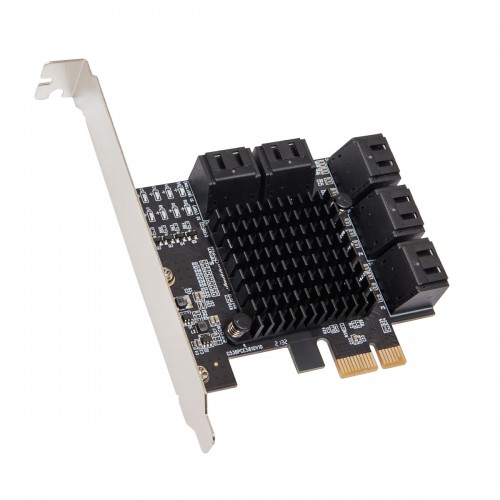

10 Port SATA III to PCIe 3.0 x1 NON-RAID Expansion Card
Part Number: SY-PEX40167 Brand: IOCrest
Supports 10-port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state.
Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1. 0, supports SATA 3. 0 transfer rate up to 6Gbps. Maximum sequencing read/ write speed 850 MB/s.

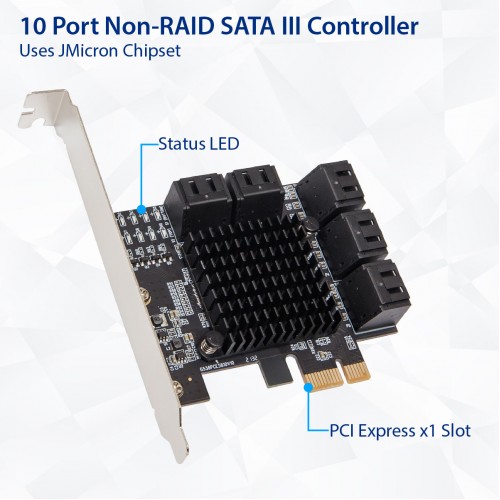

Micron JMB582 Chipset, Port Multiplier FIS-based and Command-based switching supported. Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

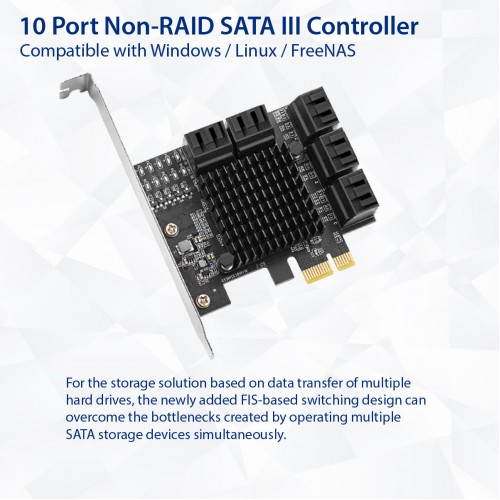

Compatible with Windows XP/7/8/10/Mac/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.

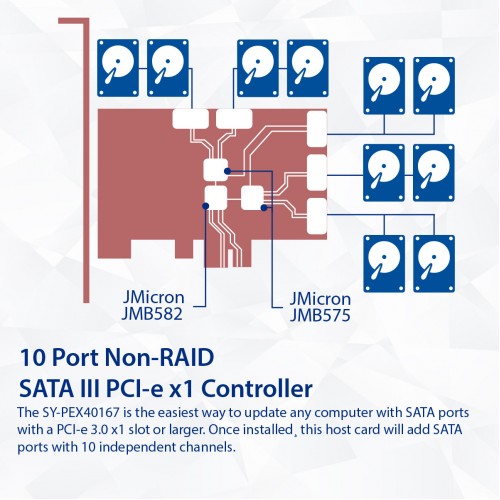

The SY-PEX40167 adds 10 SATA 6G ports through a PCIe 3.0 x1 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required.
Up to Windows 10
Mac OS
Linux
Package Dimensions: L 6.75 × W 5.50 × H 1.25 in
Package Weight: 0.30lb
UPC: 857426008840
- (1) SATA III (6Gbps) Internal 6 port PCI-E Card
- (5) SATA Cable (18″)
- (1) User’s Manual
- (1) Low-Profile Bracket

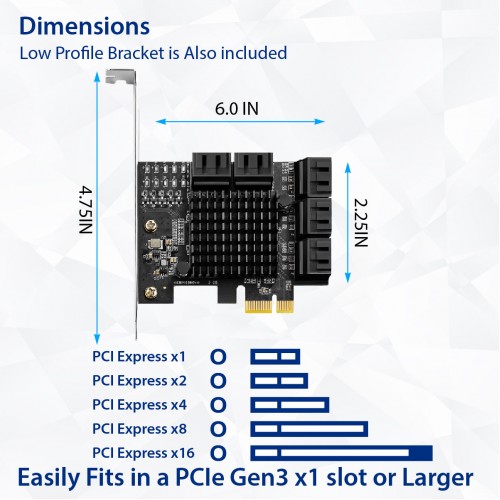

PC Motherboard with PCI-Express x1 Card Slot or Larger
| TYPE | OS | LANGUAGE | VERSION | FILE |
| Driver | Windows 7 , Windows 10 | English | 1 | Download |
